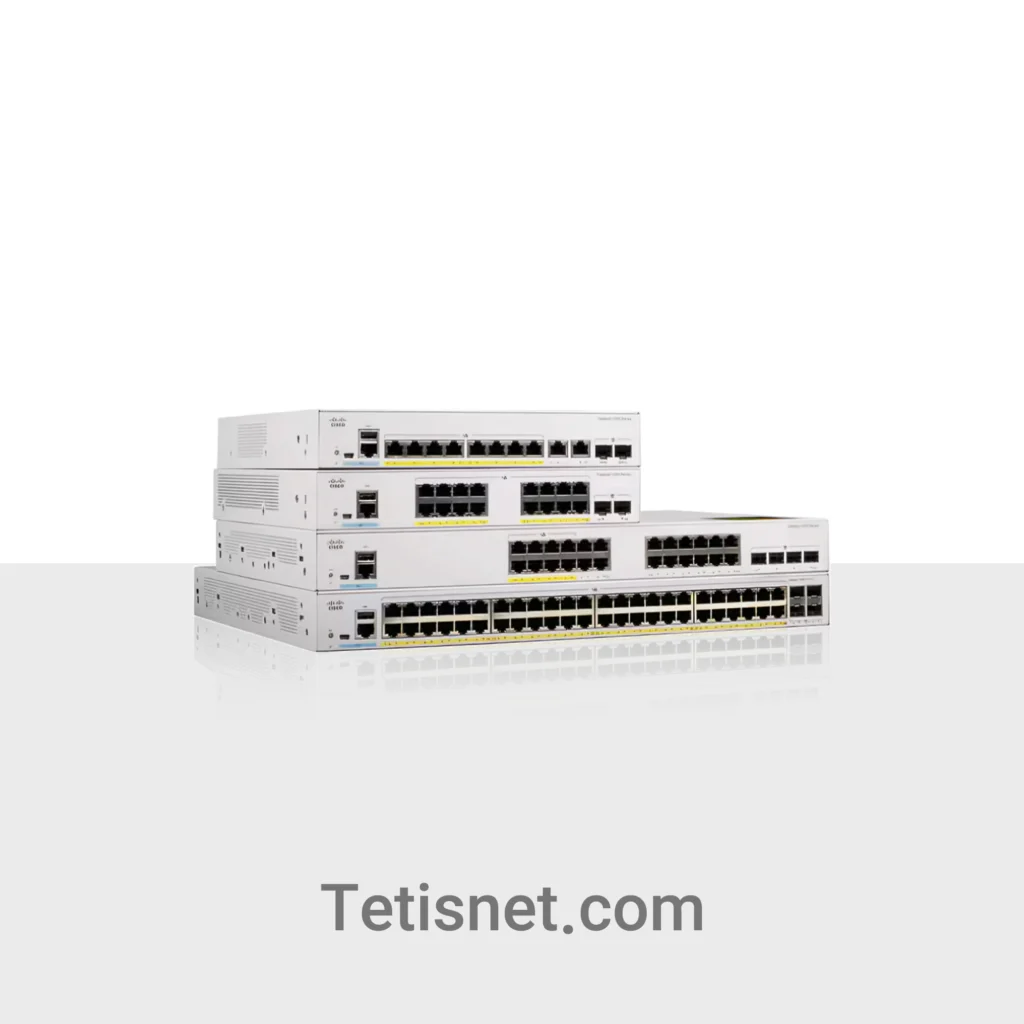

معرفی Cisco Catalyst 1000 Series Switches
محصولات سری جدید Cisco Catalyst 1000 سری جدید سوییچ های سیسکو با قابلیت های Enterprise و مناسب برای استفاده در لایه Access سازمانهای کوچک طراحی گردیده است.
طراحی کامپکت، بدون فن و پشتیبانی از POE این سوییچ را به گزینه ای بسیار مناسب جهت استفاده در لایه Access نموده است. این سری از سوییچ های سیسکو در تنوع پورت 8, 16, 24, 48 ارایه شده و علاوه بر این جهت مدیریت دستگاه یک محیط گرافیکی بسیار جذاب طراحی شده که امکان پیکربندی را بسیار ساده و لذت بخش میکند.
همچنین به دلیل پشتیبانی از +PoE امکان اتصال تجهیزات IoT مانند دوربین، انواع تلفن voip، Access point و سایر تجهیزات دارای قابلیت PoE به سادگی امکانپذیر می باشد.
شاید این مدل بهترین و مقرون به صرفه ترین سوییچ برای شرکتها و سازمان هایی باشد که از محصولات سری Catalyst 2960 استفاده میکردند باشد.
قابلیت های Cisco Catalyst 1000 Series Switches
در این بخش مهمترین قابلیت های Cisco Catalyst 1000 Series Switches را بررسی میکنیم:
- پشتیبانی از +PoE با میزان بودجه پاور 750W
- امکان پیکربندی توسط CLI و محیط گرافیکی
- پشتیبانی از پروتکل مانیتورینگ sFlow
- پشتیانی از پروتکل امنیتی IEEE 802.1x، SPAN و BPDU Guard
- طراحی کامپکت و فشرده بدون فن با عمق 33cm
- پشتیبانی از آپلینک های مسی و فیبر 1G/10G
- امکان مدیریت دستگاه با over-the-air از طریق بلوتوث، SNMP و کنسول
مدلهای مختلف سوییچ های سری 1000
| Description | Product number |
| Cisco Catalyst 1000 Series Switches with 2x 1GSFP and RJ-45 combo uplinks | |
| 8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks | C1000-8T-2G-L |
| 8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks, with external PS | C1000-8T-E-2G-L |
| 8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget , 2x 1G SFP and RJ-45 combo uplinks | C1000-8P-2G-L |
| 8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, with external PS | C1000-8P-E-2G-L |
| 8x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP and RJ-45 combo uplinks | C1000-8FP-2G-L |
| 8x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, with external PS | C1000-8FP-E-2G-L |
| Cisco Catalyst 1000 Series Switches with 2x 1G SFP uplinks | |
| 16x 10/100/1000 Ethernet ports, 2x 1G SFP uplinks | C1000-16T-2G-L |
| 16x 10/100/1000 Ethernet ports, 2x 1G SFP uplinks with external PS | C1000-16T-E-2G-L |
| 16x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP uplinks | C1000-16P-2G-L |
| 16x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP uplinks with external PS | C1000-16P-E-2G-L |
| 16x 10/100/1000 Ethernet PoE+ ports and 240W PoE budget, 2x 1G SFP uplinks | C1000-16FP-2G-L |
| Cisco Catalyst 1000 Series Switches with 4x 1G SFP uplinks | |
| 24x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks | C1000-24T-4G-L |
| 24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 1G SFP uplinks | C1000-24P-4G-L |
| 24x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 1G SFP uplinks | C1000-24FP-4G-L |
| 48x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks | C1000-48T-4G-L |
| 48x 10/100/1000 Ethernet PoE+ and 370W PoE budget ports, 4x 1G SFP uplinks | C1000-48P-4G-L |
| 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 1G SFP uplinks | C1000-48FP-4G-L |
| Cisco Catalyst 1000 Series Switches with 4x 10G SFP+ uplinks | |
| 24x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks | C1000-24T-4X-L |
| 24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 10G SFP+ uplinks | C1000-24P-4X-L |
| 24x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks | C1000-24FP-4X-L |
| 48x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks | C1000-48T-4X-L |
| 48x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks | C1000-48P-4X-L |
| 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 10G SFP+ uplinks | C1000-48FP-4X-L |
| Cisco Catalyst 1000 Series Switches with 2x 1GSFP and RJ-45 combo uplinks and 2x 1G SFP uplinks | |
| 24x 10/100 Ethernet ports, 2x 1GSFP and RJ-45 combo uplinks and 2x 1G SFP uplinks | C1000FE-24T-4G-L |
| 24x 10/100 Ethernet PoE+ ports and 195W PoE budget, 2x 1GSFP and RJ-45 combo uplinks and 2x 1G SFP uplinks | C1000FE-24P-4G-L |
| 48x 10/100 Ethernet ports, 2x 1GSFP and RJ-45 combo uplinks and 2x 1G SFP uplinks | C1000FE-48T-4G-L |
| 48x 10/100 Ethernet PoE+ and 370W PoE budget ports, 2x 1GSFP and RJ-45 combo uplinks and 2x 1G SFP uplinks | C1000FE-48P-4G-L |
مشخصات فنی سوییچ های سری 1000
| 48-port models (1/10G uplinks) | 24-port models (1/10G uplinks) | 16-port models | 8-port models | ||||||||||||
| Console ports | |||||||||||||||
| 1 | 1 | 1 | 1 | RJ-45 Ethernet | |||||||||||
| 1 | 1 | 1 | 1 | USB-A port for storage and Bluetooth console | |||||||||||
| Memory and processor | |||||||||||||||
| ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | CPU | |||||||||||
| 512 MB | 512 MB | 512 MB | 512 MB | DRAM | |||||||||||
| 256 MB | 256 MB | 256 MB | 256 MB | Flash memory | |||||||||||
| Performance | |||||||||||||||
| FE: 8.8 Gbps | FE: 6.4 Gbps | 18 Gbps | 10 Gbps | Forwarding bandwidth | |||||||||||
| 1G: 52 Gbps | 1G: 28 Gbps | ||||||||||||||
| 10G: 88Gpbs | 10G: 64 Gbps | ||||||||||||||
| FE: 17.6 Gbps | FE: 12.8 Gbps | 36 Gbps | 20 Gbps | Switching bandwidth | |||||||||||
| 1G: 104 Gbps | 1G: 56 Gbps | ||||||||||||||
| 10G: 176 Gbps | 10G: 128 Gbps | ||||||||||||||
| FE: 13.09 Mpps | FE: 9.52 Mpps | 26.78 Mpps | 14.88 Mpps | Forwarding rate | |||||||||||
| 1G: 77.38 Mpps | 1G: 41.67 Mpps | (64‑byte L3 packets) | |||||||||||||
| 10G: 130.94 | 10G: 95.23 Mpps | ||||||||||||||
| 16000 | 16000 | 16000 | 16000 | Unicast MAC addresses | |||||||||||
| 542 | 542 | 542 | 542 | IPv4 unicast direct routes | |||||||||||
| 256 | 256 | 256 | 256 | IPv4 unicast indirect routes | |||||||||||
| 414 | 414 | 414 | 414 | IPv6 unicast direct routes | |||||||||||
| 128 | 128 | 128 | 128 | IPv6 unicast indirect routes | |||||||||||
| 1024 | 1024 | 1024 | 1024 | IPv4 multicast routes and IGMP groups | |||||||||||
| 1024 | 1024 | 1024 | 1024 | IPv6 multicast groups | |||||||||||
| 600 (FE: 384) | 600 (FE: 384) | 600 | 600 | IPv4/MAC security ACEs | |||||||||||
| 600 (FE: 256) | 600 (FE: 256) | 600 | 600 | IPv6 security ACEs | |||||||||||
| 256 | 256 | 256 | 256 | Maximum active VLANs | |||||||||||
| 4094 | 4094 | 4094 | 4094 | VLAN IDs available | |||||||||||
| 64 | 64 | 64 | 64 | Maximum STP instances | |||||||||||
| 4 | 4 | 4 | 4 | Maximum SPAN sessions | |||||||||||
| 9198 bytes | 9198 bytes | 9198 bytes | 9198 bytes | MTU-L3 packet | |||||||||||
| 10,240 bytes | 10,240 bytes | 10,240 bytes | 10,240 bytes | Jumbo Ethernet frame | |||||||||||
| Yes (FE: No) | Yes (FE: No) | Yes | Yes | Dying Gasp | |||||||||||
| 1,452,667 | 2,026,793 | 2,165,105 | 2,171,669 | MTBF in hours (data) | |||||||||||
| 856,329 | 698,220 | 706,983 | 1,786,412, 1,706,649 (External PS) | MTBF in hours (PoE) | |||||||||||
| 856,329 | 698,220 | - | 1,706,649 | MTBF in hours (Full PoE) | |||||||||||
| Environmental | |||||||||||||||
| Operating temperature | |||||||||||||||
| -5 to 50 deg C* | Sea level | ||||||||||||||
| -5 to 45 deg C | Up to 5,000ft (1500 m) | ||||||||||||||
| -5 to 40 deg C | Upto 10,000 (3000 m) | ||||||||||||||
| 10,000 ft (3,000m) | Operating altitude | ||||||||||||||
| 5% to 90% at 40 deg C (non-condensing) | Operating relative humidity | ||||||||||||||
| -13 to 158F (-25 to 70C) | Storage temperature | ||||||||||||||
| 15,000 ft (4500m) | Storage altitude | ||||||||||||||
| 5% to 95% at 65 deg C (non-condensing) | Storage relative humidit | ||||||||||||||
| 50C operation is supported for short term operation only; | *Note: | ||||||||||||||
| When using C1000-8T-E-2G-L, C1000-8T-2G-L, C1000-8P-E-2G-L, C1000-8P-2G-L, C1000-8FP-E-2G-L, C1000-8FP-2G-L, C1000-16T-E-2G-L, C1000-16T-2G-L, C1000-16P-E-2G-L, C1000-16P-2G-L, C1000-16FP-2G-L, C1000-24T-4G-L, C1000-24P-4G-L with GLC-BX-U or GLC-BX-D SFP module, the thermal limitations are as follows: | |||||||||||||||
| Up to 5,000 feet, the operation temperature should not exceed 45ºC. | |||||||||||||||
| Up to 10,000 feet, the operation temperature should not exceed 40ºC. | |||||||||||||||
| When using C1000-24T-4X-L, C1000-24P-4X-L with SFP-10G-ER or SFP-10G-ER-S SFP+ module, the thermal limitations are as follows: | |||||||||||||||
| Up to 5,000 feet, the operation temperature should not exceed 45ºC. | |||||||||||||||
| Up to 10,000 feet, the operation temperature should not exceed 40ºC. | |||||||||||||||
| Minimum ambient temperature for cold start is at 0 deg C (32 deg F) | |||||||||||||||
| FE Data | Data | FE Data | Data | Data Ext. PS | Data | Data Ext.PS | Data | Electrical | |||||||
| 110 to 220V AC in | 110 to 220V AC in | 110 to 220V AC in | 110 to 220V AC in | Voltage | |||||||||||
| (auto ranging) | |||||||||||||||
| 50 to 60 Hz | 50 to 60 Hz | 50 to 60 Hz | 50 to 60 Hz | Frequency | |||||||||||
| 0.24A to 0.69A | 0.29A to 0.48A | 0.12A to 0.34A | 0.20A to 0.33A | 0.19A to 0.31A | 0.16A to 0.26A | 0.16A to 0.26A | 0.13A to 0.22A | Current | |||||||
| 0.035 kVA | 0.09 kVA | 0.02 kVA | 0.06 kVA | 0.05 kVA | 0.05 kVA | 0.017 kVA | 0.04 kVA | Power rating | |||||||
| (maximum consumption) | |||||||||||||||
| FE PoE | PoE | FE PoE | PoE | PoE Ext. PS | PoE | PoE Ext. PS | PoE | Electrical | |||||||
| 110 to 220V AC in | 110 to 220V AC in | 110 to 220V AC in | 110 to 220V AC in | Voltage | |||||||||||
| (auto ranging) | |||||||||||||||
| 50 to 60 Hz | 50 to 60 Hz | 50 to 60 Hz | 50 to 60 Hz | Frequency | |||||||||||
| 0.26A to 0.46A | 0.37A to 0.64A | 0.23A to 0.35A | 0.37A to 0.64A | 0.14A to 0.24A | 0.24A to 0.28A | 0.22A to 0.37A | 0.22A to 0.27A | Current | |||||||
| 0.046 kVA | 0.48 kVA | 0.025 kVA | 0.48 kVA | 0.20 kVA | 0.19 kVA | 0.087 kVA | 0.11 kVA | Power rating | |||||||
| (maximum consumption) | |||||||||||||||
| Full PoE | Full PoE | Full PoE | Full PoE Ext. PS | Full PoE | Electrical | ||||||||||
| 110 to 220V AC in | 110 to 220V AC in | 110 to 220V AC in | 110 to 220V AC in | Voltage (auto ranging) | |||||||||||
| 50 to 60 Hz | 50 to 60 Hz | 50 to 60 Hz | 50 to 60 Hz | Frequency | |||||||||||
| 0.45A to 0.94A | 0.29A to 0.48A | 0.35A to 0.37A | 0.15A to 0.2A | 0.23A to 0.28A | Current | ||||||||||
| 0.95 kVA | 0.8 kVA | 0.45 kVA | 0.15 kVA | 0.15 kVA | Power rating | ||||||||||
| (maximum consumption) | |||||||||||||||
| FE Data | Data | FE Data | Data | Data Ext. PS | Data | Data Ext.PS | Data | Power consumption (watts) | |||||||
| 21.41 | 1G: 27.37 | 11.22 | 1G: 15.84 | 14.4 | 14.52 | 13.15 | 14.04 | 0% traffic | |||||||
| 10G: 29.4 | 10G: 18 | ||||||||||||||
| 23.02 | 1G: 41.57 | 12.83 | 1G: 22.08 | 16.44 | 16.44 | 13.76 | 14.06 | 10% traffic | |||||||
| 10G: 42.28 | 10G: 24.48 | ||||||||||||||
| 23.03 | 1G: 53.66 | 17.15 | 1G: 22.8 | 16.68 | 16.68 | 14 | 14.26 | 100% traffic | |||||||
| 10G: 54.73 | 10G: 25.68 | ||||||||||||||
| 22.49 | 1G: 40.87 | 13.73 | 1G: 20.2 | 15.84 | 15.88 | 13.64 | 14.12 | Weighted average | |||||||
| 10G: 42.1 | 10G: 22.7 | ||||||||||||||
| FE PoE | PoE | FE PoE | PoE | PoE Ext. PS | PoE | PoE Ext. PS | PoE | Power consumption (watts) | |||||||
| 21.62 | 1G: 27.9 | 14.5 | 1G: 15.84 | 13.68 | 14.64 | 9.13 | 10.22 | 0% traffic | |||||||
| 10G: 28.0 | 10G: 18 | ||||||||||||||
| 24.74 | 1G: 42.77 | 16.1 | 1G: 22.44 | 15.48 | 16.56 | 15.39 | 12.02 | 10% traffic | |||||||
| 10G: 42.73 | 10G: 24.72 | ||||||||||||||
| 24.75 | 1G: 54.25 | 18.58 | 1G: 23.16 | 16.32 | 16.92 | 15.71 | 12.19 | 100% traffic | |||||||
| 10G: 54.49 | 10G: 25.68 | ||||||||||||||
| 23.7 | 1G: 41.64 | 16.39 | 1G: 20.48 | 15.16 | 16.04 | 13.41 | 11.48 | Weighted average | |||||||
| 10G: 41.74 | 10G: 22.8 | ||||||||||||||
| Full PoE | Full PoE | Full PoE | Full PoE Ext. PS | Full PoE | Power consumption (watts) | ||||||||||
| 1G: 30.61 | 1G: 18.36 | 14.4 | 14.3 | 13.44 | 0% traffic | ||||||||||
| 10G: 30.91 | 10G: 19.68 | ||||||||||||||
| 1G: 45.16 | 1G: 26.16 | 16.68 | 14.9 | 14.4 | 10% traffic | ||||||||||
| 10G: 45.78 | 10G: 26.28 | ||||||||||||||
| 1G: 61.66 | 1G: 35.4 | 16.8 | 15.7 | 14.52 | 100% traffic | ||||||||||
| 10G: 62.26 | 10G: 36 | ||||||||||||||
| 1G: 45.81 | 1G: 26.68 | 15.96 | 14.97 | 14.12 | Weighted average | ||||||||||
| 10G: 46.31 | 10G: 27.32 | ||||||||||||||
| Note: The wattage rating on the power supply does not represent actual power draw. It indicates the maximum power draw possible by the power supply. This rating can be used for facility capacity planning. For PoE switches, cooling requirements are smaller than total power draw because a significant portion of the load is dissipated in the endpoints. | |||||||||||||||
| Acoustic noise (48-port PoE models only) | |||||||||||||||
| C1000-48T-4G-L, C1000-48T-4X-L – 31.5 dB | C1000-24FP-4G-L, C1000-24FP-4X-L – 34.8 dB | Sound pressure (Typical) | |||||||||||||
| C1000-48P-4G-L, C1000-48P-4X-L – 36.1 dB | |||||||||||||||
| C1000-48FP-4G-L | |||||||||||||||
| C1000-48FP-4X-L – 47.6dB | |||||||||||||||
| Note: Bystander positions operating mode at 77°F (25°C) ambient; All other models are fanless for silent operations | |||||||||||||||
| Safety and compliance | |||||||||||||||
| UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 | Safety | ||||||||||||||
| GB 4943.1-2011 | |||||||||||||||
| 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A | EMC: Emissions | ||||||||||||||
| EN55024 (including EN 61000-4-5), EN300386, KN35 | EMC: Immunity | ||||||||||||||
| Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU | Environmental | ||||||||||||||
| Common Language Equipment Identifier (CLEI) code | Telco | ||||||||||||||
| USGv6 and IPv6 Ready Logo | U.S. government certifications | ||||||||||||||
| Connectors and interfaces | |||||||||||||||
| 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling | Ethernet interfaces | ||||||||||||||
| 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling | |||||||||||||||
| 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling | |||||||||||||||
| 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling | |||||||||||||||
| Per-port status: link integrity, disabled, activity | Indicator LEDs | ||||||||||||||
| System status: System | |||||||||||||||
| CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 | Console cables | ||||||||||||||
| Use the supplied AC power cord to connect the AC power connector to an AC power outlet | Power | ||||||||||||||
| Models have external power supply | |||||||||||||||
| IF-MIB | CISCO-PORT-QOS-MIB | BRIDGE-MIB | Management | ||||||||||||
| INET-ADDRESS-MIB | CISCO-PORT-SECURITY-MIB | CISCO-CABLE-DIAG-MIB | |||||||||||||
| OLD-CISCO-CHASSIS-MIB | CISCO-PORT-STORM-CONTROL-MIB | CISCO-CDP-MIB | |||||||||||||
| OLD-CISCO-FLASH-MIB | CISCO-PRODUCTS-MIB | CISCO-CLUSTER-MIB | |||||||||||||
| OLD-CISCO-INTERFACES-MIB | CISCO-PROCESS-MIB | CISCO-CONFIG-COPY-MIB | |||||||||||||
| OLD-CISCO-IP-MIB | CISCO-RTTMON-MIB | CISCO-CONFIG-MAN-MIB | |||||||||||||
| OLD-CISCO-SYS-MIB | CISCO-SMI-MIB | CISCO-DHCP-SNOOPING-MIB | |||||||||||||
| OLD-CISCO-TCP-MIB | CISCO-STP-EXTENSIONS-MIB | CISCO-ENTITY-VENDORTYPE-OID-MIB | |||||||||||||
| OLD-CISCO-TS-MIB | CISCO-SYSLOG-MIB | CISCO-ENVMON-MIB | |||||||||||||
| RFC1213-MIB | CISCO-TC-MIB | CISCO-ERR-DISABLE-MIB | |||||||||||||
| RMON-MIB | CICSO-TCP-MIB | CISCO-FLASH-MIB | |||||||||||||
| RMON2-MIB | CISCO-UDLDP-MIB | CISCO-FTP-CLIENT-MIB | |||||||||||||
| SNMP-FRAMEWORK-MIB | CISCO-VLAN-IFTABLE | CISCO-IGMP-FILTER-MIB | |||||||||||||
| SNMP-MPD-MIB | CISCO-VLAN-MEMBERSHIP-MIB | CISCO-IMAGE-MIB | |||||||||||||
| SNMP-NOTIFICATION-MIB | CISCO-VTP-MIB | CISCO-IP-STAT-MIB | |||||||||||||
| SNMP-TARGET-MIB | ENTITY-MIB | CISCO-LAG-MIB | |||||||||||||
| SNMPv2-MIB | ETHERLIKE-MIB | CISCO-MAC-NOTIFICATION-MIB | |||||||||||||
| TCP-MIB | IEEE8021-PAE-MIB | CISCO-MEMORY-POOL-MIB | |||||||||||||
| UDP-MIB | IEEE8023-LAG-MIB | CISCO-PAGP-MIB | |||||||||||||
| CISCO-POE-EXTENSIONS-MIB | |||||||||||||||
| For an updated list of supported MIBs, refer to the MIB Locator at cisco.com/go/mibs. | |||||||||||||||
| IEEE 802.3ab 1000BASE-T | IEEE 802.3ad | IEEE 802.1D STP | Standards | ||||||||||||
| IEEE 802.3z 1000BASE-X | IEEE 802.3af and IEEE 802.3at | IEEE 802.1p CoS Prioritization | |||||||||||||
| RMON I and II standards | IEEE 802.3ah (100BASE-X single/multimode fiber only) | IEEE 802.1Q VLAN | |||||||||||||
| SNMP v1, v2c, and v3 | IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports | IEEE 802.1s | |||||||||||||
| IEEE 802.3az | IEEE 802.3 10BASE-T | IEEE 802.1w | |||||||||||||
| IEEE 802.3ae 10 Gigabit Ethernet | IEEE 802.3u 100BASE-TX | IEEE 802.1X | |||||||||||||
| IEEE 802.1ax | IEEE 802.1ab LLDP | ||||||||||||||
| Bluetooth v4.0 | |||||||||||||||
| RFC 1256 - ICMP Router Discovery | RFC 768 - UDP | RFC compliance | |||||||||||||
| RFC 1305 - NTP | RFC 783 - TFTP | ||||||||||||||
| RFC 1492 - TACACS+ | RFC 791 - IP | ||||||||||||||
| RFC 1493 - Bridge MIB | RFC 792 - ICMP | ||||||||||||||
| RFC 1542 - BOOTP extensions | RFC 793 - TCP | ||||||||||||||
| RFC 1901 - SNMP v2C | RFC 826 - ARP | ||||||||||||||
| RFC 1902-1907 - SNMP v2 | RFC 854 - Telnet | ||||||||||||||
| RFC 1981 - Maximum Transmission Unit (MTU) Path Discovery IPv6 | RFC 951 - Bootstrap Protocol (BOOTP) | ||||||||||||||
| FRC 2068 - HTTP | RFC 959 - FTP | ||||||||||||||
| RFC 2131 - DHCP | RFC 1112 - IP Multicast and IGMP | ||||||||||||||
| RFC 2138 - RADIUS | RFC 1157 - SNMP v1 | ||||||||||||||
| RFC 2233 - IF MIB v3 | RFC 1166 - IP Addresses | ||||||||||||||
