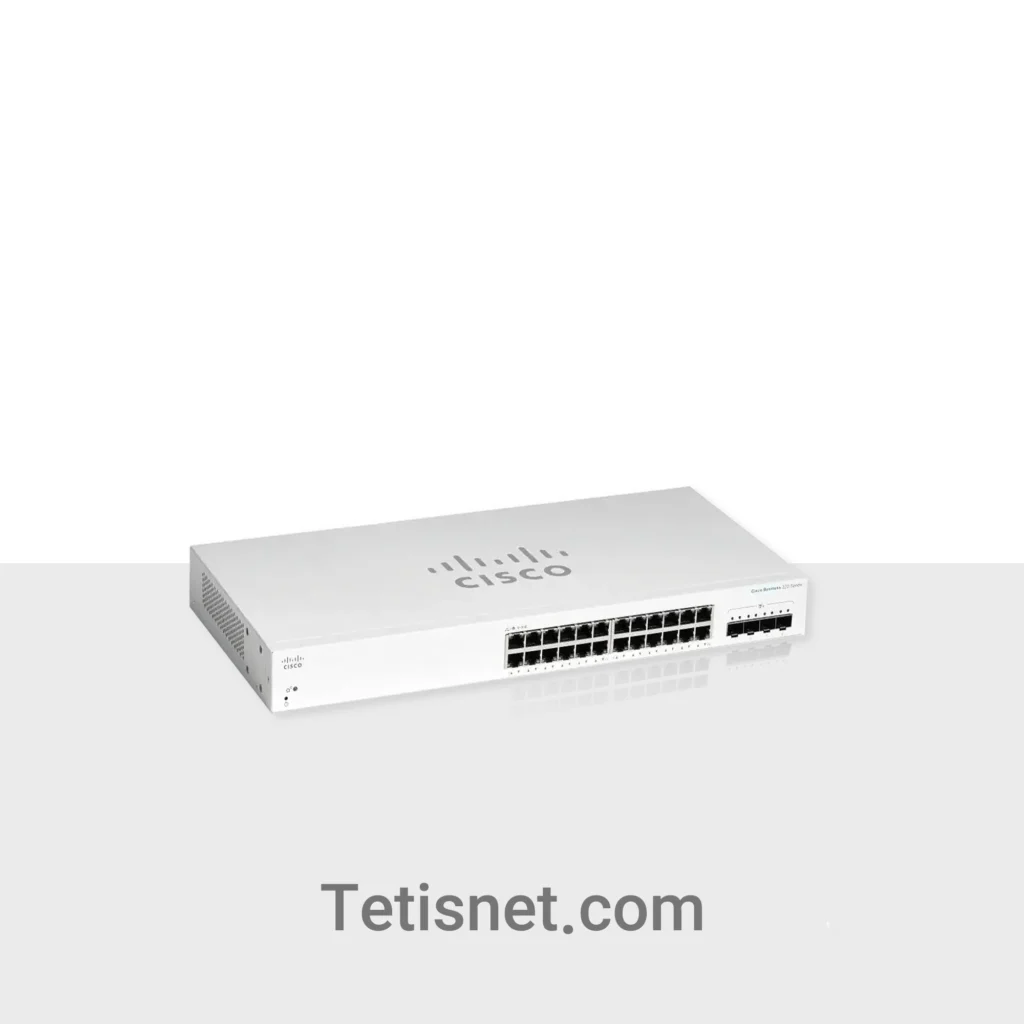

Cisco Switch CBS220-24T-4G

لایسنس ها و تجهیزات مرتبط با IT

تمام تجهیزات به صورت نو و اورجینال همراه با ضمانت یکساله و خدمات پس از فروش ۵ ساله ارائه میگردند.

استعلام قیمت

"*" indicates required fields

جهت دریافت اطلاعات بیشتر لطفا با شماره 02188735581 و یا ایدی واتس اپ تیم فروش تماس گرفته شود.



Cisco Switch CBS220-24T-4G یک سوییچ اقتصادی از سری خانواده سوییچ های CBS220 شرکت سیسکو و  مناسب برای شبکه های کوچک می باشد. این محصول 24 پورت گیگابیت اترنت مسی و 4 پورت گیگابیت اترنت فیبر نوری در اختیار ما قرار میدهد.  از عمده مزایای این سوییچ می توان به محیط گرافیکی کامل جهت مدیریت و پیکربندی سوییچ اشاره کرد.


این محصول یه جایگزین بسیار مناسب جهت جایگزینی سوییچ های 2960 شرکت سیسکو می باشد.

در جدول زیر مشخصات و قابلیت های این محصول را مشاهده می کنید

Description Feature
Switching capacity in Gigabits per second (Gbps) Forwarding rate in millions of packets per second (mpps; 64-byte packets) Model name Switching capacity
20 14.88 CBS220-8T-E-2G
20 14.88 CBS220-8P-E-2G
20 14.88 CBS220-8FP-E-2G
20 14.88 CBS220-16T-2G
36 26.78 CBS220-16P-2G
56 41.66 CBS220-24T-4G
56 41.66 CBS220-24P-4G
56 41.66 CBS220-24FP-4G
104 74.38 CBS220-48T-4G
104 74.38 CBS220-48P-4G
128 95.23 CBS220-24T-4X
128 95.23 CBS220-24P-4X
128 95.23 CBS220-24FP-4X
176 130.94 CBS220-48T-4X
176 130.94 CBS220-48P-4X
176 130.94 CBS220-48FP-4X
Layer 2 switching
Up to 8,192 Media Access Control (MAC) addresses MAC table
Standard 802.1d Spanning Tree support, enabled by defaultFast convergence using 802.1w (Rapid Spanning Tree [RSTP])Multiple Spanning Tree instances using 802.1s (MSTP)16 instances are supported Spanning Tree Protocol (STP)
Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)● Up to 8 groups ● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation Load balance based on source and destination MAC address, or source and destination MAC/IP Port grouping
Support for up to 256 Virtual Local Area Networks (VLANs) simultaneously Port-based and 802.1Q tag-based VLANs Management VLAN Guest VLAN VLAN
Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS Auto voice VLAN
VLANs transparently cross a service provider network while isolating traffic among customers QinQ VLAN
Protocols for automatically propagating and configuring VLANs in a bridged domain Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP)
HOL blocking prevention Head-of-Line (HOL) blocking
Frame sizes up to 9,216 supported Jumbo frame
Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP. Loopback detection
Automatically adjusts transmit and receive pairs if an incorrect cable type (crossover or straight-through) is installed. Automatic Media-Dependent Interface Crossover (MDIX)
Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, Transmission Control Protocol (TCP)/ User Datagram Protocol (UDP) source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, Internet Group Management Protocol (IGMP) packets, TCP flagSupport up to 512 rules ACLs
Creates the ability to lock source MAC addresses to ports; limits the number of learned MAC addresses Port security
802.1X: Remote Authentication Dial-in User Service (RADIUS) authentication; guest VLAN;Single-host, multiple-host, and multisession mode IEEE 802.1X (authenticator role)
Supports RADIUS and Terminal Access Controller Access Control System (TACACS) authentication; switch functions as a client RADIUS, TACACS+
Supported MAC address filtering
Broadcast, multicast, and unknown unicast Storm control
DOS attack prevention DoS protection
This security mechanism protects the network from invalid configurations. A port enabled for BPDU Guard is shut down if a BPDU message is received on that port STP Bridge Protocol Data Unit (BPDU) Guard
This feature provides additional protection against Layer 2 forwarding loops (STP loops) Spanning Tree Loop Guard
SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH v1 and v2 are supported Secure Shell (SSH) Protocol
SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch Secure Sockets Layer (SSL)
8 hardware queues per port Priority levels
Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and class of service (802.1p/CoS) Scheduling
Port-based; 802.1p VLAN priority-based; IPv4/v6 IP precedence, Type of Service (ToS), and DSCP-based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS Class of service
Ingress policer; egress shaping and rate control; per VLAN, per port, and flow-based Rate limiting
A TCP congestion avoidance algorithm is required to reduce and prevent global TCP loss synchronization Congestion avoidance
IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups Internet Group Management Protocol (IGMP) Versions 1, 2, and 3 Snooping
IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router IGMP querier
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE802.3af, IEEE 802.3at, RFC 768, Request for Comments (RFC) 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC1350, RFC 1533, RFC 1541, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC2131, RFC 2132, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC2576, RFC 4330, RFC 1213, RFC 1215, RFC 1286, RFC 1442, RFC 1451, RFC 1493, RFC1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 1157, RFC1493, RFC 1215, RFC 3416 Standards
IPv6 host modeIPv6 over EthernetIPv6/IPv4 Dual StackIPv6 neighbor and router discovery (ND)IPv6 stateless address auto-configurationPath Maximum Transmission Unit (MTU) discoveryDuplicate Address Detection (DAD)ICMP version 6 IPv6
Drop or rate limit IPv6 packets in hardware IPv6 ACL
Prioritize IPv6 packets in hardware IPv6 QoS
Deliver IPv6 multicast packets only to the required receivers Multicast Listener Discovery (MLD v1/2) Snooping
Web/SSL, Telnet server/SSH, DHCP Client, DHCP Autoconfig, Cisco Discovery Protocol (CDP), Link Layer Discovery Protocol (LLDP) IPv6 applications
RFC 4443 (which obsoletes RFC2463) - ICMP version 6RFC 4291 (which obsoletes RFC 3513) - IPv6 address architectureRFC 4291 - IPv6 addressing architectureRFC 2460 - IPv6 specificationRFC 4861 (which obsoletes RFC 2461) - Neighbor discovery for IPv6RFC 4862 (which obsoletes RFC 2462) - IPv6 stateless address auto-configurationRFC 1981 - Path MTU discoveryRFC 4007 - IPv6 scoped address architectureRFC 3484 - Default address selection mechanism IPv6 Requests for Comments (RFCs) supported
Support direct management with Cisco Business Dashboard and mobile app. Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard Probe on site. Cisco Business Dashboard
Mobile app for Cisco Business Switch and Wireless products. Helps to set up a local network in minutes and provide easy management at your fingertips. Cisco Business mobile app
The Cisco Network Plug and Play solution provides a simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a zero touch deployment experience.Supports Cisco PnP Connect Cisco Network Plug and Play (PnP) agent
Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, system dashboard, system maintenance, and monitoring Web user interface
Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment Text-editable config files
Scriptable CLI; a full CLI is supported. User privilege levels 1 and 15 are supported for the CLI Command-line interface
Simple Management Network Protocol (SNMP) versions 1, 2c, and 3 with support for traps, and SNMP version 3 User-based Security Model (USM) SNMP
Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis Remote Monitoring (RMON)
Coexistence of both protocol stacks to ease migration IPv4 and IPv6 dual stack
Traffic on a port or VLAN can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port. Four sessions are supported. Port mirroring
Web browser upgrade (HTTP/HTTPS) and Trivial File Transfer Protocol (TFTP)/ Dual images for resilient firmware upgrades Firmware upgrade
DHCP options facilitate tighter control from a central point (DHCP server) to obtain IP address, auto-configuration (with configuration file download), DHCP relay, and hostname DHCP (Option 12, 66, 67, 82, 129, and 150)
Simple Network Time Protocol (SNTP) Time synchronization
Configurable multiple banners for web as well as CLI Login banner
HTTP/HTTPS; TFTP upgrade; DHCP client; Bootstrap Protocol (BOOTP); cable diagnostics; ping; traceroute; syslog Other management
The switch advertises itself using the Bonjour protocol Bonjour
LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones. Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP-MED Extensions
The switch advertises itself using the Cisco Discovery Protocol. Displays brief information for connected Cisco network devices, IP phones, and wireless access points Cisco Discovery Protocol
Power efficiency
Support 802.3az Energy Efficient Ethernet on all ports; substantially reduce the power consumption when link bandwidth is not at full utilization EEE compliance (802.3az)
Automatically turns power off on Gigabit Ethernet and 10/100 RJ-45 ports when detecting a link downActive mode is resumed without loss of any packets when the switch detects the link up Energy Detect
LEDs can be manually turned off to save on energy Disable port LEDs
PoE power can be on or off based on user-defined schedule to save energy Time-based PoE
Link up or down based on user-defined schedule (when the port is administratively up) Time-based port operation
Power over Ethernet
Switches support 802.3af, 802.3at, and Cisco pre-standard (legacy) PoE with maximum power of 30 W per portThis applies to the following PoE-enabled models; the maximum number of ports providing PoE power simultaneously is determined by the total PoE budget for the switch listed as below: 802.3af PoE or 802.3at PoE+ delivered over any of the RJ-45 network ports within the listed power budgets
Number of Ports That Support PoE PoE Power Budget Model Name
8 65W CBS220-8P-E-2G
8 130W CBS220-8FP-E-2G
16 130W CBS220-16P-2G
24 195W CBS220-24P-4G
24 382W CBS220-24FP-4G
48 382W CBS220-48P-4G
24 195W CBS220-24P-4X
24 382W CBS220-24FP-4X
48 382W CBS220-48P-4X
48 740W CBS220-48FP-4X
Support Cisco Pre-Standard PoE Pre-standard PoE
Support the granular power negotiation with CDP/LLDP communication with PD devices after IEEE classification Intelligent PoE power management
Reset button Buttons
Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5Ethernet or better for 1000BASE-T Cabling type
System, Link/Act, Speed LEDs
64 MB Flash
256 MB CPU memory
Uplink ports RJ-45 ports Total system ports Model name Ports
2 Gigabit Ethernet Small form-factor pluggable (SFP) 8 Gigabit Ethernet 10 Gigabit Ethernet CBS220-8T-E-2G
2 Gigabit Ethernet SFP 8 Gigabit Ethernet 10 Gigabit Ethernet CBS220-8P-E-2G
2 Gigabit Ethernet SFP 8 Gigabit Ethernet 10 Gigabit Ethernet CBS220-8FP-E-2G
2 Gigabit Ethernet SFP 16 Gigabit Ethernet 18 Gigabit Ethernet CBS220-16T-2G
2 Gigabit Ethernet SFP 16 Gigabit Ethernet 18 Gigabit Ethernet CBS220-16P-2G
4 Gigabit Ethernet SFP 24 Gigabit Ethernet 28 Gigabit Ethernet CBS220-24T-4G
4 Gigabit Ethernet SFP 24 Gigabit Ethernet 28 Gigabit Ethernet CBS220-24FP-4G
4 Gigabit Ethernet SFP 48 Gigabit Ethernet 52 Gigabit Ethernet CBS220-48T-4G
4 Gigabit Ethernet SFP 48 Gigabit Ethernet 52 Gigabit Ethernet CBS220-48P-4G
+4X10G SPF 24 Gigabit Ethernet 24 Gigabit Ethernet + 4 10 Gigabit Ethernet CBS220-24T-4X
+4X10G SPF 24 Gigabit Ethernet 24 Gigabit Ethernet + 4 10 Gigabit Ethernet CBS220-24P-4X
+4X10G SPF 24 Gigabit Ethernet 24 Gigabit Ethernet + 4 10 Gigabit Ethernet CBS220-24FP-4X
+4X10G SPF 48 Gigabit Ethernet 48 Gigabit Ethernet + 4 10 Gigabit Ethernet CBS220-48T-4X
+4X10G SPF 48 Gigabit Ethernet 48 Gigabit Ethernet + 4 10 Gigabit Ethernet CBS220-48P-4X
+4X10G SPF 48 Gigabit Ethernet 48 Gigabit Ethernet + 4 10 Gigabit Ethernet CBS220-48FP-4X
All numbers are aggregate across all ports as the buffers are dynamically shared Packet Buffer
Packet buffer Model name
4.1Mb CBS220-8T-E-2G
4.1Mb CBS220-8P-E-2G
4.1Mb CBS220-8FP-E-2G
4.1Mb CBS220-16T-2G
4.1Mb CBS220-16P-2G
4.1Mb CBS220-24T-4G
4.1Mb CBS220-24P-4G
4.1Mb CBS220-24FP-4G
12Mb CBS220-48T-4G
12Mb CBS220-48P-4G
12Mb CBS220-24T-4X
12Mb CBS220-24P-4X
12Mb CBS220-24FP-4X
16Mb CBS220-48T-4X
16Mb CBS220-48P-4X
16Mb CBS220-48FP-4X
Maximum distance Speed Media SKU Supported SFP Modules
500m 1000 Multimode fiber MGBSX1
10km 1000Mbps Single-mode fiber MGBLX1
40km 1000Mbps Single-mode fiber MGBLH1
100m 1000Mbps UTP Category 5 MGBT1
550m 1000Mbps Multimode fiber GLC-SX-MMD
10km 1000Mbps Single-mode fiber GLC-LH-SMD
10km 1000Mbps Single-mode fiber GLC-BX-U
10km 1000Mbps Single-mode fiber GLC-BX-D
100m 1000Mbps UTP cat 5e GLC-TE
1m 10Gig Copper coax SFP-H10GB-CU1M
26mn-400m 10Gig Multimode fiber SFP-10G-SR
10km 10Gig Single-mode fiber SFP-10G-LR
26mn-400m 10Gig Multimode fiber SFP-10G-SR-S
10km 10Gig Single-mode fiber SFP-10G-LR-S
Unit dimensions Model name Unit dimensions (W x D x H)
279x 170 x 44 mm (11.0 x 6.7 x 1.7 in) CBS220-8T-E-2G
279x 170 x 44 mm (11.0 x 6.7 x 1.7 in) CBS220-8P-E-2G
279x 170 x 44 mm (11.0 x 6.7 x 1.7 in) CBS220-8FP-E-2G
440x 203 x 44 mm (17.3 x 8.0 x 1.7 in) CBS220-16T-2G
440x 203 x 44 mm (17.3 x 8.0 x 1.7 in) CBS220-16P-2G
440x 203 x 44 mm (17.3 x 8.0 x 1.7 in) CBS220-24T-4G
440x 257 x 44 mm (17.3 x 10.1 x 1.7 in) CBS220-24P-4G
440x 257 x 44 mm (17.3 x 10.1 x 1.7 in) CBS220-48T-4G
440x 257 x 44 mm (17.3 x 10.1 x 1.7 in) CBS220-48P-4G
440x 203 x 44 mm (17.3 x 8.0 x 1.7 in) CBS220-24T-4X
440x 257 x 44 mm (17.3 x 10.1 x 1.7 in) CBS220-24P-4X
440 x 257 x 44 mm (17.3 x 10.1 x 1.7 i) CBS220-24FP-4X
440x 257 x 44 mm (17.3 x 10.1 x 1.7 in) CBS220-48T-4X
440x 350 x 44 mm (17.3 x 13.8 x 1.7 in) CBS220-48P-4X
440x 350 x 44 mm (17.3 x 13.8 x 1.7 in) CBS220-48FP-4X
Unit weight Model name Unit weight
1.16kg (2.56 lb) CBS220-8T-E-2G
1.18kg (2.60 lb) CBS220-8P-E-2G
1.18kg (2.60 lb) CBS220-8FP-E-2G
2.48kg (5.47 lb) CBS220-16T-2G
3.03kg (6.68 lb) CBS220-16P-2G
2.75kg (6.06 lb) CBS220-24T-4G
4.07kg (8.97 lb) CBS220-24P-4G
4.10kg (9.04 lb) CBS220-24FP-4G
3.18kg (7.01 lb) CBS220-48T-4G
5.29kg (11.66 lb) CBS220-48P-4G
2.69kg (5.93 lb) CBS220-24T-4X
4.03kg (8.88 lb) CBS220-24P-4X
4.03kg (8.88 lb) CBS220-24FP-4X
3.54kg (7.80 lb) CBS220-48T-4X
5.36kg (11.82 lb) CBS220-48P-4X
5.65kg (12.46 lb) CBS220-48FP-4X
100-240V, 50-60 Hz, Internal: CBS220-16T-2G, CBS220-16P-2G, CBS220-24T-4G, CBS220-24P-4G, CBS220-24FP-4G, CBS220-48T-4G, CBS220-48P-4G, CBS220-24T-4X, CBS220-24P-4X, CBS220-24FP-4X, CBS220-48T-4X, CBS220-48P-4X, CBS220-48FP-4X100-240 V, 50-60 Hz, External: CBS220-8T-E-2G, CBS220-8P-E-2G, CBS220-8FP-E-2G Power
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, C-tick Certifications
0-50°C Operating temperature
20°to +70° C- Storage temperature
10%to 90%, relative, noncondensing Operating humidity
10%to 90%, relative, noncondensing Storage humidity
Heat dissipation (BTU/hr) Power consumption (with PoE) System power consumption Model name Power Consumption
20.13 N/A 110V=5.7W220V=5.9W CBS220-8T-E-2G
278.43 110V=81.2W220V=81.6W 110V=7.8W220V=8.2W CBS220-8P-E-2G
516.6 110V=151.4W220V=148.9W 110V=9.1W220V=9.1W CBS220-8FP-E-2G
38.9 N/A 110V=11.1W220V=11.4W CBS220-16T-2G
546.63 110V=160.2W220V=159.4W 110V=16.8W220V=18.3W CBS220-16P-2G
61.42 N/A 110V=18.0W220V=18.0W CBS220-24T-4G
833.59 110V=244.3W220V=240.3W 110V=30.2W220V=30.4W CBS220-24P-4G
1,566.17 110V=459W220V=445W 110V=30.8W220V=30.8W CBS220-24FP-4G
124.54 N/A 110V=36.5W220V=36.1W CBS220-48T-4G
1,631.69 110V=478.2W220V=464W 110V=52.6W220V=53.0W CBS220-48P-4G
80.5 N/A 110V=23.2W220V=23.6W CBS220-24T-4X
848.6 110V=248.7W220V=244.4W 110V=36.9W220V=37.6W CBS220-24P-4X
1,603.71 110V=470W220V=456.4W 110V=39.6W220V=39.6W CBS220-24FP-4X
140.58 N/A 110V=41.0W220V=41.2W CBS220-48T-4X
1,644.65 110V=482W220V=468W 110V=54.8W220V=55.1W CBS220-48P-4X
3,070.92 110V=900W220V=875.3W 110V=65.7W220V=64.4W CBS220-48FP-4X
MTBF @ 25°C (hours) Acoustic noise Fan (number) Model name Acoustic Noise and Mean Time Between Failure (MTBF)
1,489,560 N/A Fanless CBS220-8T-E-2G
315,326 N/A Fanless CBS220-8P-E-2G
660,457 N/A Fanless CBS220-8FP-E-2G
1,062,289 N/A Fanless CBS220-16T-2G
611,476 N/A Fanless CBS220-16P-2G
1,049,371 N/A Fanless CBS220-24T-4G
587,473 25°C: 42.7 dB 2 CBS220-24P-4G
588,411 25°C: 43.2 dB 2 CBS220-24FP-4G
727,181 25°C: 35.0 dB 1 CBS220-48T-4G
452,351 25°C: 34.8 dB 1 CBS220-48P-4G
1,372,359 25°C: 34 dB 1 CBS220-24T-4X
617,232 25°C: 42.7 dB 2 CBS220-24P-4X
588,411 25°C: 44.2 dB 2 CBS220-24FP-4X
420,827 25°C: 32.6 dB 1 CBS220-48T-4X
265,589 25°C: 35.1 dB 1 CBS220-48P-4X
289,406 25°C: 37.7 dB 1 CBS220-48FP-4X
Package contents
Cisco Business 220 Series Ethernet switch/ Power cord or adaptor/ Mounting kit/ Quick start guide Package contents


نظرات (0)
مشترک شوید
اطلاع از
بازخورد (Feedback) های اینلاین
نمایش تمام دیدگاه ها


هنوز حساب کاربری ندارید؟

برای دیدن نوشته هایی که دنبال آن هستید تایپ کنید.
دوست داریم نظرتونو بدونیم ، لطفا دیدگاهی بنویسیدx
